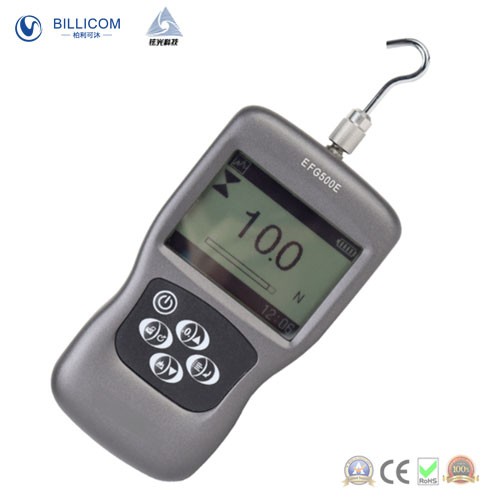

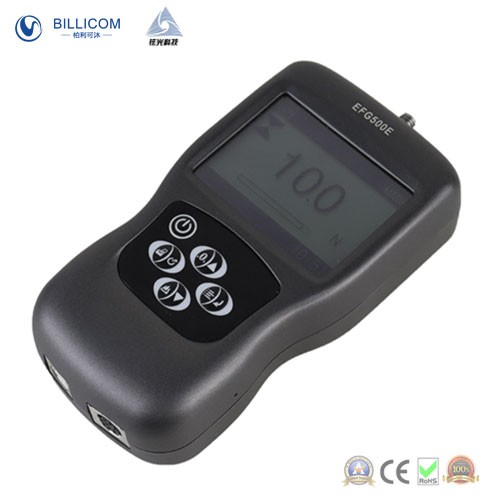

EFGE Digital Push Pull Force Gauge

EFGE Digital Push Pull Force Gauge Description

With compact size, and high accuracy, the digital push pull test meter is easy to operate and handy to carry out. The digital pull force gauge, also called the digital push-pull force meter, can be widely applied in electron, high & low voltage electrical appliances, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and other industries for testing of pull or push load test, insertion force or pull and destructive experience.

EFGE digital push-pull force meters are high-precision push-pull force test instruments. The electronic push pull force gauge adopts an aluminum alloy shell, and the whole machine is light in weight. These spring testing machines are especially suitable for hand-held measurement. It has built-in high-precision sensors and mechanical overload.

The internal sampling frequency of this digital force gauge meter is 1000HZ, the software has tracking, peak, and preset modes, which can be applied to the brake test of the product. Compared with the compression force gauge, the insertion force test and other force tests, up to 500 measurement data storage.

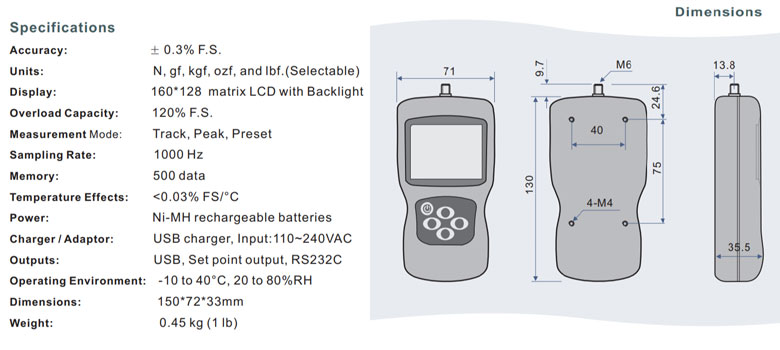

EFGE Digital Push Pull Force Gauge Parameter

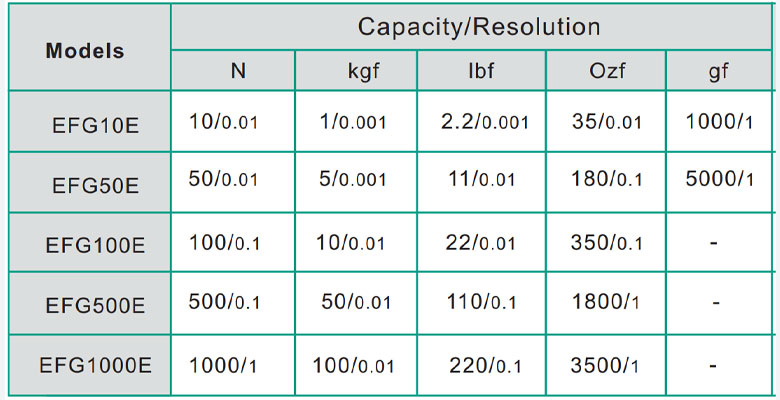

EFGE Digital Push Pull Force Gauge Model Select
